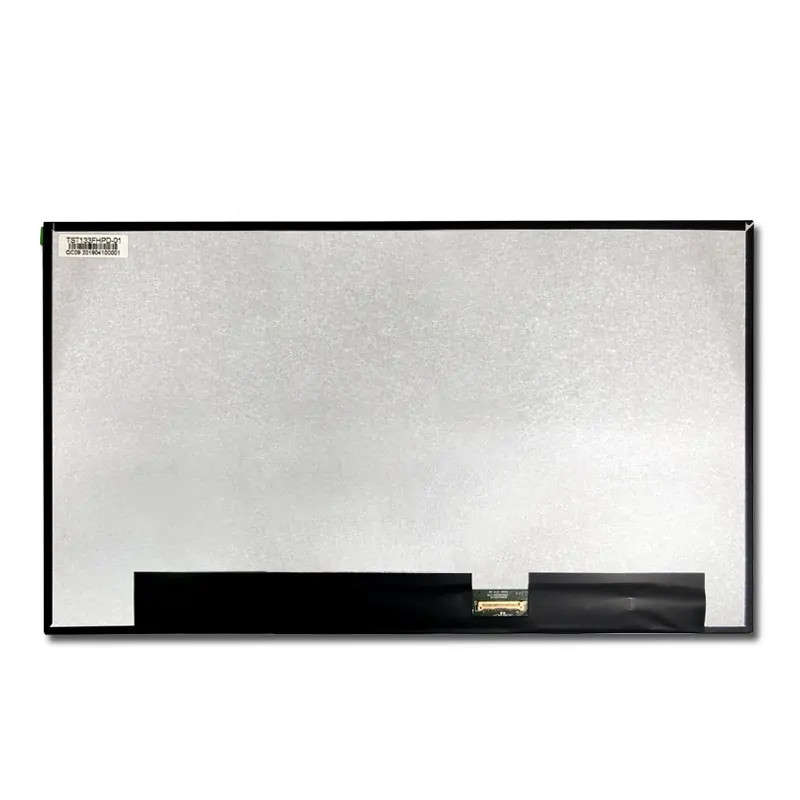

    HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module

    Ask Lasest Price
    Brand Name : DYMONA
    Model Number : TST133PHD-DMN
    Certification : CE,SGS,ROHS,ISO9001
    Price : Negotiable price
    Payment Terms : L/C, T/T,Payyal
    Supply Ability : 1KK pcs
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module

    HD 13.3 inch TFT LCD Screen 1920X1080 with EDP 30pin Interface LCD Display Module


    Product Description


    Item
    Specification
    Display Mode
    13.3''/α-Si TFT/IPS/Transmissive/Normally Black
    Part NO.
    TST133PHD-DMN
    Resolution
    1920x(RGB)x1080
    Outline Size
    300.26x188.25x2.6mm
    Active Area(WxH)
    293.76x165.24mm
    View Direction
    All O'clock
    Pixel Pitch
    0.153x0.153
    Interface
    EDP 30PIN
    Backlight
    56LEDs, 160mA, 21.5V
    Surface Lumiannce
    220nits
    Surface Treatment
    Anti-glare, coating : 3H
    Operating Voltage
    3.3V
    Operating Temperature
    -0℃~50℃
    Storage Temperature
    -20℃~60℃

    13.3 inch display 1920*1080 TFT LCD liquid crystal display panel.It is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel

    and a driving circuit.This TFT LCD has a 13.3 inch diagonally measured active display area with (1920 horizontal by1080 vertical pixe l) resolution.


    Our service

    TFT LCM Module Standard and custom make from 4.3" TFT to 43" TFT.


    Fast reply:

    Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.


    Delivery Guarantee:

    Large Stock System, We have our own warehouses in Shenzhen and AnHui, with comprehensive supply lines.


    After-Sale Service:

    Professional support team to provide effective service, we are young and full of passion!

    HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module


    HD 13.3 LCD Screen 1920X1080 EDP 30pin Interface LCD Display Module

    Please let us know your requirements on Screen:
    1), Size
    2), Resolution
    3), Brightness/Luminance
    4), Viewing Angle
    5), Light Source
    6), Signal Interface: LVDS or eDP or V-by-One
    or tell us the exact model # for reference.
    we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you!
